I have been tasked to make a standard VTScada template. This will get used in different applications. How it is supposed to function is that it will list all the shutdown conditions and it will display which ones are in fault (easy part). Then when you click on each shutdown it will take you to the faceplate of the device it is connected too. The problem I run into is when trying to have it all parameterized I need it to be able to make a choice on what page to open. Any ideas are welcome

Jason, without knowing the full context of your project, it is a little vague. But, I hope this is helpful. Let me know if you have any questions.

Here is some example code and pictures for creating a dynamic page jump.

(
  pTagSelection Object<SEL2411, SEL2414, SEL2431, SEL2523, SEL2523AG, SEL2533, SEL300G, SEL311C, SEL311L, SEL351, SEL351_7, SEL351A, SEL351R, SEL351S, SEL3530, SEL3530_4, SEL387, SEL387A, SEL387E, SEL411L, SEL421, SEL487V, SEL501, SEL551C, SEL587, SEL587Z, SEL651R, SEL700G, SEL735, SEL751, SEL751A, SEL787>;
  wName <:"l7dexTxWv":> Text;
)
[
  Title = "IinbjDJpQ";
  Color = "<FF202020>";
  ScaleDisplayContent = 1;
  Bitmap = "Bitmaps\Tiles\Opaque\Slate.png";
  PageBMPBrightness = 1;
  PageBMPTransparency = 1;
  PageBMPContrast = 1;
  PageBMPMirror = 0;
  PageBMPColorize = "<FFFFFFFF>";
  PageBMPTile = 1;
  PageBMPTileScale = 1;
  PageBMPStretch = 0;
  PageBMPMarginTop = 41;
  PageMaintainAspectRatio = 1;
  PageChangeName1;
  PageChangeName2;
  WinFlag = 1;
  PageX;
  PageY;
  PageHeight = 625;
  PageWidth = 490;
  PageMinWidth;
  PageMinHeight;
  PageVWidth;
  PageVHeight;
  PageToolTipLabel;
  IsVic ;

]

Init[
    If 1 Main;
    [
        IsVic = IsVICSession(True) ? 0 : 1;
    ]

]

Main [
  Title = CONCAT(\GetPhrase(pTagSelection\Variables\IED1Tag\Device)," Operator Page");
  Return(Self);
  PageChangeName1 = pTagSelection\Variables\IED1Page\Value;
  PageChangeName2 = pTagSelection\Variables\IED2Page\Value;

  GUITransform(44, 274, 200, 219,
               1, 1, 1, 1, 1 { Scaling              },
               0, 0          { Movement             },
               PickValid(pTagSelection\Variables\IED1Type\Value == "" ? 0 : 0.001, 0), 0          { Visibility, Reserved },
               0, 0, 0       { Selectability        },
               Scope(\Code, "Library", TRUE)\PageChange(PageChangeName1, 1, pTagSelection\Variables\IED1Tag\Value));
  GUITransform(288, 274, 444, 219,
               1, 1, 1, 1, 1 { Scaling              },
               0, 0          { Movement             },
               PickValid(pTagSelection\Variables\IED2Type\Value == "" ? 0 : 0.001, 0), 0          { Visibility, Reserved },
               0, 0, 0       { Selectability        },
               Scope(\Code, "Library", TRUE)\PageChange(PageChangeName2, 1, pTagSelection\Variables\IED2Tag\Value));

]

Note the

PageChangeName[#]

This is a dynamic variable that draws its value from a tag nested in the linked tags tree.

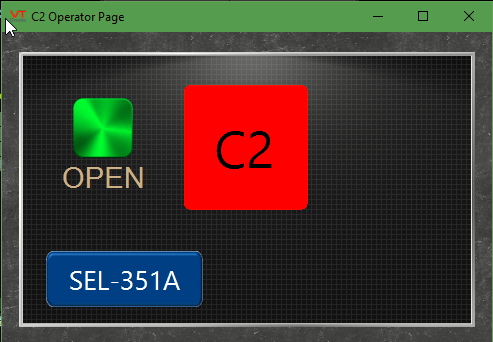

Note that the second tag is blank, which in turn causes the second link to stay transparent.

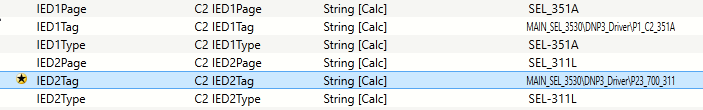

If I would added a second tag reference...

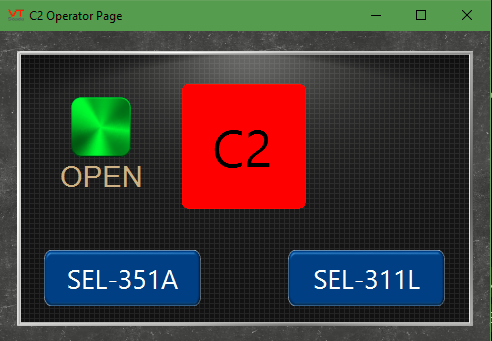

Then another page jump button shows up.
Note: The text on page jump buttons comes directly from the tags they are link to. This is not hard coded.

This is all to show that you can use the information in a tag tree to dynamically change your list.
Hope this is useful!

That definitely helps thank you! One question I do have is I want it to open a new popup when I click the buttons instead of just updating the current popup, is there a way to make that happen?

Two separate page jumps or hot boxes will open two separate windows. If this is not how it is operating, we may need to get more information from the source code.

Jason, how did this end up for you?

I actually didn't see that until today oops. so this is what I have

GUITransform(23, 113, 618, 87,
1, 1, 1, 1, 1 { Scaling },
0, 0 { Movement },
1, 0 { Visibility, Reserved },
0, 0, 0 { Selectability },
Scope(\Code, "Library", TRUE)\PageChange(Concat(Scope(\VTSDB, concat("SpruceLake\Comm Driver\",\shortname,"\cfg_NavDisplay(0)" ), TRUE)\Value,"FP" ), 14,
Scope(\VTSDB, concat("SpruceLake\Comm Driver\", Scope(\VTSDB, concat("SpruceLake\Comm Driver\",\shortname,"\cfg_Navtag(0)" ), TRUE)\Value), TRUE)));

But instead of it opening the new page as a popup it just refreshes the current popup to be the next page

Which widget are you using to open the Popup page?

using a hotbox

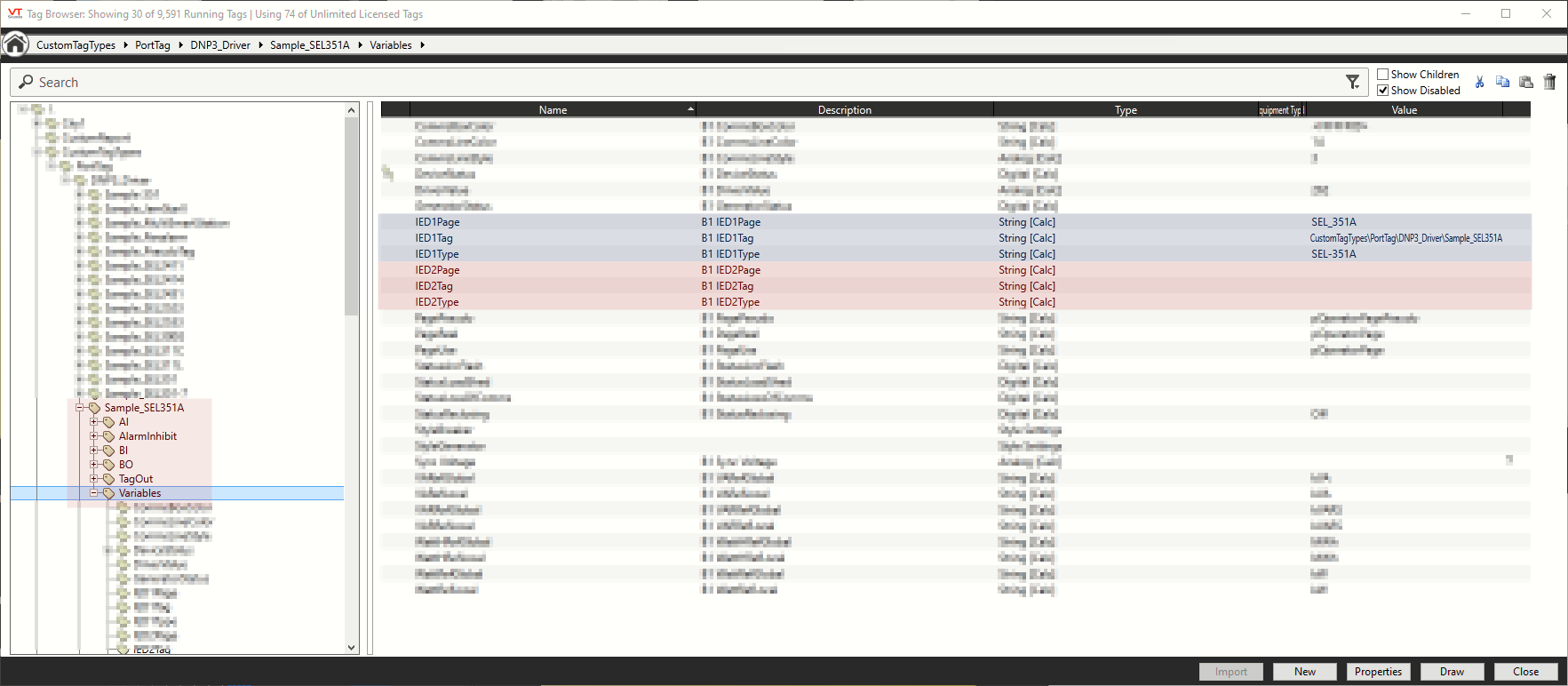

All these screen snips together is likely VERY confusing, but I wanted to get it all on the same picture.

This may help show the sequence of data, if you are able to decipher it

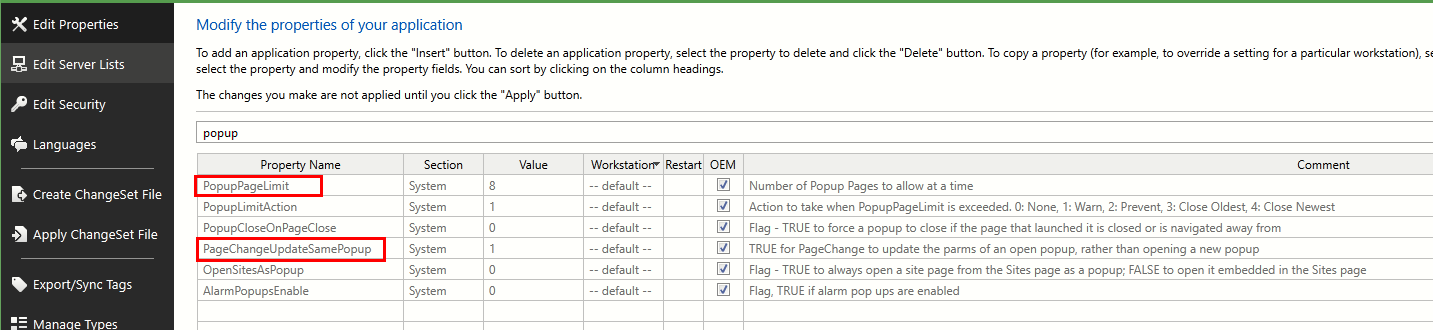

Also, please check your popup page parameters. This may be the root cause.

Alright I think I got it! thank you!
