We use Google Drive to house information of various lift stations utilizing a program spawn widget. Here's the breakdown of that program spawn...
This is just a shortened down version of what's included in that box for program spawn properties. There are 64 lift stations, so the list below is definitely longer. I created a folder for LS71 because at the time we did not have a dedicated folder for LS71. I then added what I wanted to in that folder, copied the link that Google Drive included and threw that information down in what's directly below this line:
___________________________________________________
P_Context\ShortName == "LS_01" ? "LINK COPIED FROM GOOGLE DRIVE" :
P_Context\ShortName == "LS_01" ? "LINK COPIED FROM GOOGLE DRIVE" :
"http://www.google.com"

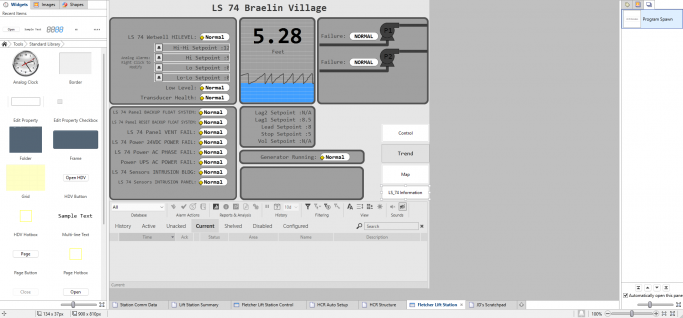

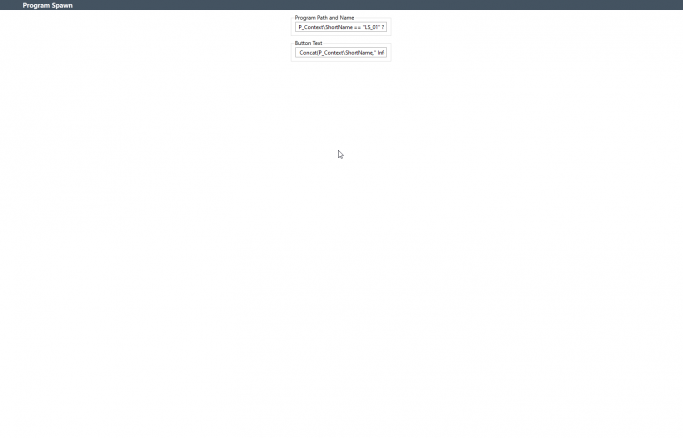

These two pictures show Idea Studio Program Spawn then Program Spawn Properties:
![623a26fc22543](serve/attachment&path=623a26fc22543)
![623a26fc39151](serve/attachment&path=623a26fc39151)

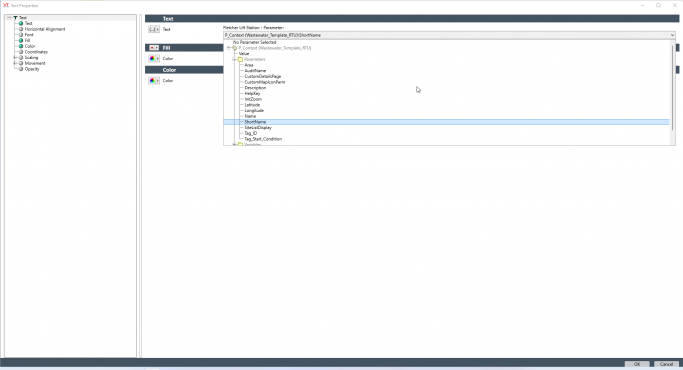

These two pictures show Idea Studio Text then Text Properties:
![623a274f04f10](serve/attachment&path=623a274f04f10)
![623a274f1afb9](serve/attachment&path=623a274f1afb9)

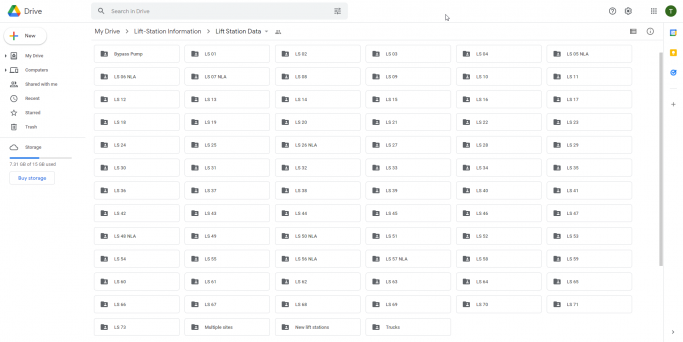

The following picture includes a look at the folders currently hosted to Google Drive:
![623a28198d8c6](serve/attachment&path=623a28198d8c6)

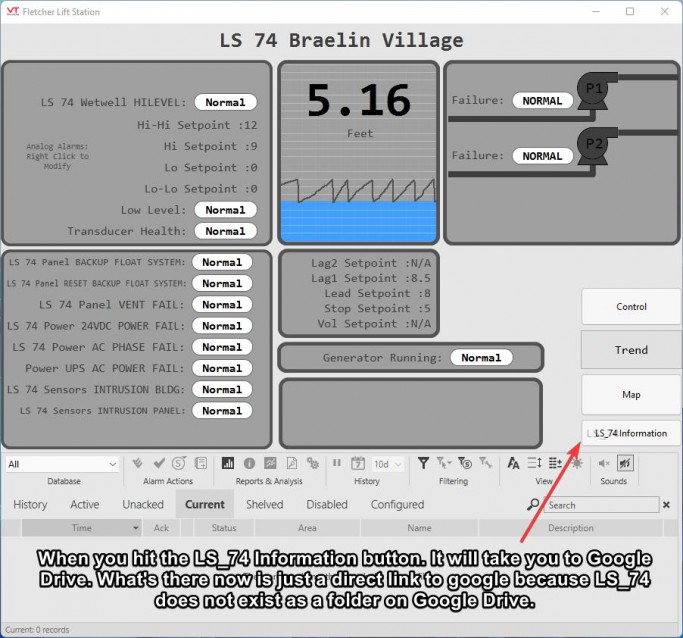

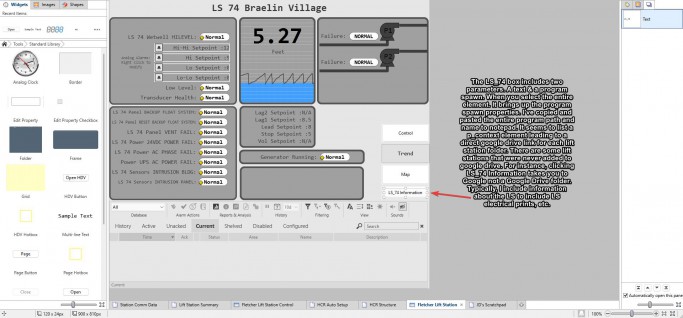

The last two pictures I'm loading are looks of an example of a Lift Station page along with the LSxx_Information Program Spawn widget. Pushing that button should take you directly to a google drive folder of the same name (ie...Lift Station 74 Program Spawn Widget = Lift Station 74 Google Drive folder web link)
![623a2a3b1be98](serve/attachment&path=623a2a3b1be98)
![623a2a3b26dd1](serve/attachment&path=623a2a3b26dd1)
Electronic Technician for the City of Tuscaloosa working in Wastewater. Shelton State - Industrial Electronics and Electrical Technology AAS, Military Veteran - Infantry, CBRN(e) Technician: Airborne, Tech Escort, etc...., NERD of all things SCIENCE
edited Mar 22 '22 at 7:57 pm
