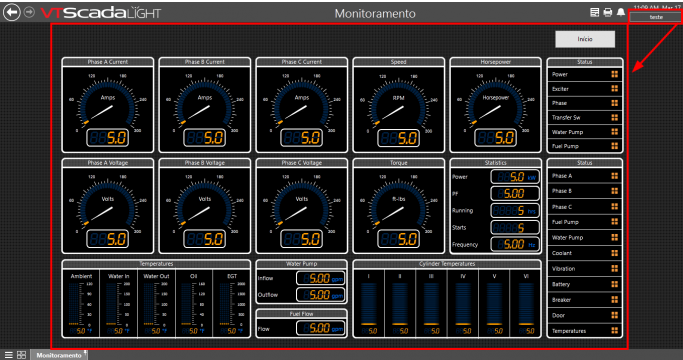

How do I create text buttons (inputs) for login access? For example, in VTScada, I created my user with the necessary permissions. In the supervisory, I want to add two input buttons and a confirmation button. These input buttons would be Username and Password. The user will enter their username and then their password. If it is correct, go to the plant Synopsis page. How do I do that? I'm

Hi All,

I want to write three status from two different tag values.

"1" Means "Open"
"2" Means "Close"
"3" Means "Travel"

How to write the tag expression referencing another two tag value in VT SCADA.

if [Sludge Dewatering\ZIO_6333A]==1 then "1"
else if [Sludge Dewatering\ZIC_6333A]==1 then "2"
ELSE "3"

I'm currently working through developing some new windows for a client. I'm new to VT Scada and have spent the bulk of my career in Ignition. I was given a changeset file to reference what they currently have or at least within the last 6 months. I started a new application to develop just the new pages and tags that I will import into the client's system.

Traditionally I have always develop

Any one pls let me know how to create a dynamic window in VTScada.

When create a dynamic window it will shrunk and resize according to the window size.

Does VTScada have the ability to acknowledge alarms via text or email?
Thanks John

When I open "Setup.ini" file by notepad then texts are shown as like below:

" • |Ù¼ƒ”5m ¬Wmkã8þ^èGw¡äÒ+-Ç~È&]ZhoRŽíq(ö$•%Ÿ¤ÄÍþú›‘•¾ÅYÜÛˇØQÆÏ<Í<3þ&Ou

I'd like to use a tag to create an Upper Control Limit (UCL) and a Lower Control Limit (LCL). This involves calculating the mean and standard deviation for a period of time. The formulas would be:

UCL = mean + (3 x (Standard Deviation))
LCL = mean - (3 x (Standard Deviation))

What would be the best approach to do this? I was looking at doing an I/O Calc tag, but the avg() and SDev()

Hello,

I wrote a calculation(analog) tag to show datetime and that value will export to excel but excel is cutting the last 3 digits.

I used the following expression, and it gives the value 202310282319 which i need to process in excel but that's fine.

CONCAT(Date(Today(), "yyyyMMdd"), "", Time(Now(1), "HHmm"))

Giving hyphens between dates don't work for analog tags.
I cannot change

A Chromium browser bug is causing some graphics not to render (where ZColorChange is used). The bug was introduced in Google Chrome Browser version 119 and associated Chromium versions (Microsoft Edge Included). You can read about the bug at https://bugs.chromium.org/p/chromium/issues/detail?id=1499539
If your VTScada Anywhere internet client graphics are not rendering correctly, you can work

I'm currently working through the training simulator to learn the fundamentals for this software. I'm stuck as I'm at the point where I need to develop graphics and start binding to tags. The button to launch the Idea Studio is missing in this project. I would expect to see it right next to the button to launch the tag configurator. Is there another way I can open Idea studio? Any ideas on how to

Looking for a way to set a value to a Calc tag (set for constant) on a project startup.

Hi,

I am trying to use a report tag to create a standard report on a 24 hour basis, running the previous 12 hours of tag data into a csv file. I can get that to work.

But I want to further automate the process and I need VTSCADA to format the report in a certain way, so every day I want the current date formatted as DD-MM-YY followed by "raw".

I can get the report to output but it has

I want to query some data from vtscada by RESTFull WebAPI. For example : http://192.168.1.2:80/web/REST/SQLQuery?query=select timestamp,'Station 1\CommChannel\Level:value' from history

But how I should Authenticate with username and password for REST API ? Thanks.

Which is the best MQTT broker i can use with VTScada ? Is it ok to install the broker on the same machine running VTScada Runtime ?

Is there any way to set the default pipe drawing weight, i dont see any setting in the advanced setting in the VAM. Wondering if there is a file or setting that i am missing?

Has bugged me for a while, however never spent time on looking into it... is this a bug or am I missing something?

When selecting one of the stock Images, i.e. arrows that have a blue infill, when I try to assign another colour to them it is as if the colours "merge" to make the resultant colour see below example, blue arrow, configured to yellow, shows green..

Hi,

I was trying to add opacity expression in momentary switches, when selector switch changing the position according to that Momentary switches will fade.

Anybody pls help me to write a expression...

Hi is there a way to subtract 1 day from the Production date in the PVR Definition, i want to have mutiple enitities that will export the last 7 days but the production date is giving me grief.

Hi Experts,

In VTscada how to create Header and Footer like dock screen in ignition? Is it possible...

I have one computer that when I connect to the remote scada server using a web browser to the web address (i.e. http://123.123.123.123:88) the display is complete. However, when i use the VTSX client on the same computer many of the icons are not rendered and the topographical background is not present. At first i suspected a video driver update but the fact that it works with the web browser
