Hi,
I want to use vtscada for a project for the first time.

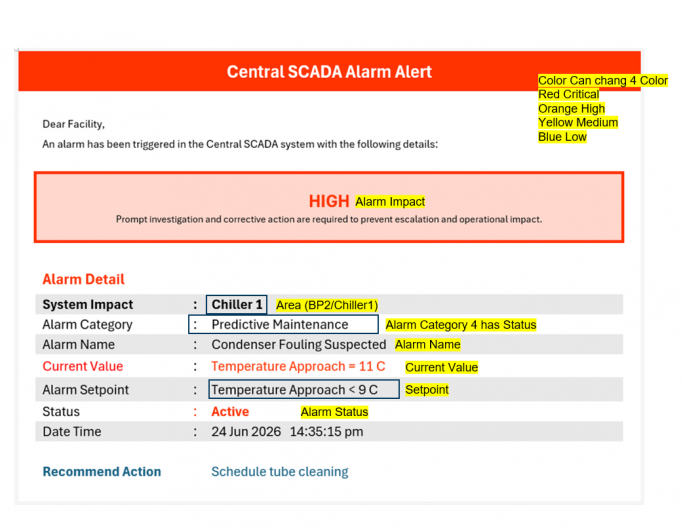

There is 150 individual machines(workstation). Where we need install vtscada on each machine. Each machine would have around 50 tags. And need 1 server at control room where all the machines can be access. Beside that need remote access 1 user, alarm notification SMS EMAIL. Big Remote screen at plant floor.
Please help to s
KC_2965
posted 6 days ago at 2:58 pm
Is there a way to set up a daily report that runs back the last 24hrs of an alarm database history into an excel file?
Also, is it possible to save a "bad actors" report to an excel or CSV?
Thanks,
KC
HaiDoan
posted Jul 28 '17 at 6:06 pm

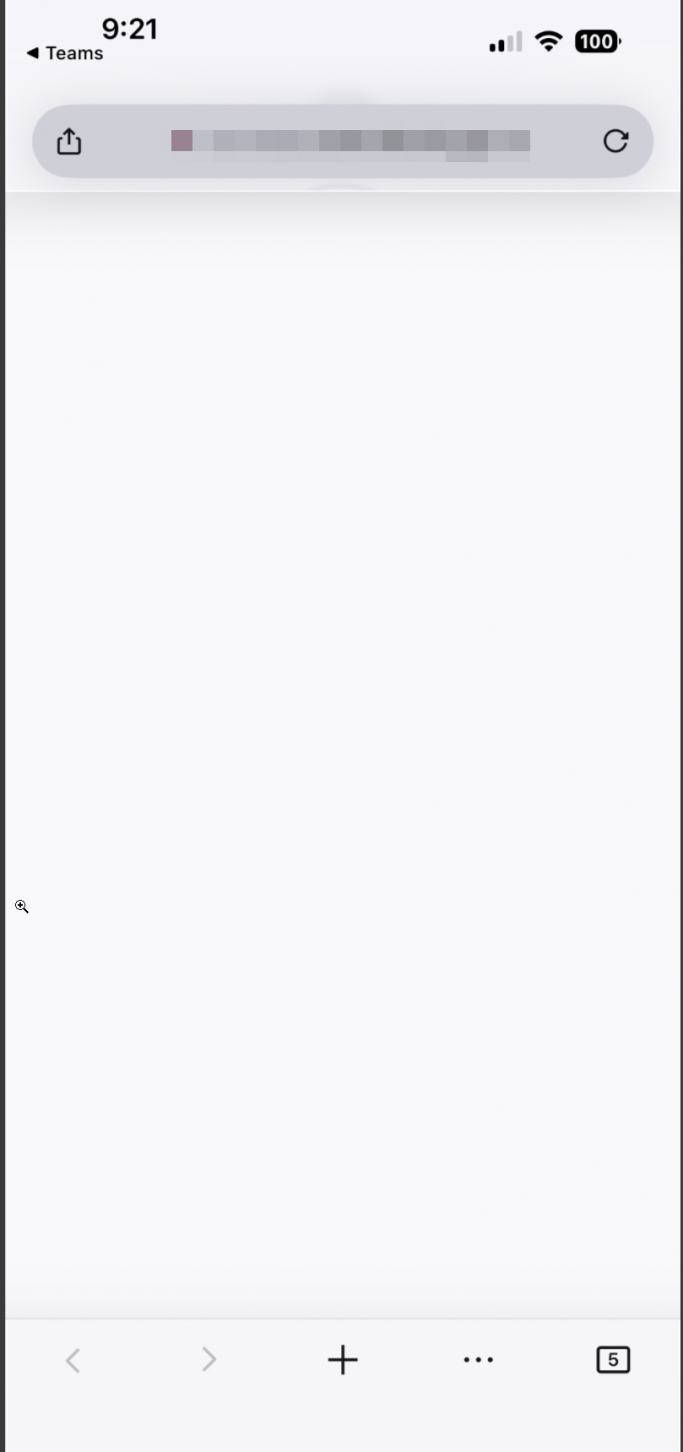

I have an ipad with the newest iOS firmware 10.3.3, all apps are up to date, yet when I log in the VTScada, after filling out username and password, it gives a white blank page.
Have tried different browsers: Safari, Chrome, Firefox but still not have luck.
I also have another ipad and this one is working fine. So network issues are not this case.
Would you please help me out? Thank
Hey,
I am working on a project using Trihedral’s software & I could use guidance. I am in the process of configuring a few systems; but I am running into challenges when it comes to optimization and best practices. I want to hear from others who have had experience with this software.
What are some of your go-to tips for setting up efficient SCADA systems using VTScada? Anyth
Hello everyone! I am a new VTScada developer that needs some guidance. Here is my current challenge that I need help with:
Our team wants to set up a callout system using Twilio. I've got that part working in a test environment. The next step is setting up a page or widget or other method that allows operators to modify the roster without tag permissions. We want certain operators to be able
Smills
posted Jan 13 at 10:01 pm
Good afternoon,
I am currently trying to set up SNMP between a Lantronix switch and VTScada. I downloaded the MIB file direct from the Lantronix website, but whenever I try to import the file into VTScada I get the error shown in the attached image below. I was able to successfully load the MIB into iReasoning without any problems and also had Lantronix Support double check the MIB file for
Hello, Is there a way to silently install VTS 10.2.22 using the 'VTSSetup-Full.exe'. None of the standard command line switches seem to work.
Thanks for any help!
jimt
posted Jan 13 at 11:19 pm
In the Historical Data Viewer (HDV), I'm getting 3 values for a specific timestamp. What is the issue and how do I get only a single value?
Marco
posted Jan 14 at 8:52 pm
Does anyone know how to connect to Motorola ACE 3600?
The most common instructions are all about Modbus TCP which is not supported by ACE 3600, and I have no idea to make it via Motorola ACE Driver. Does anyone have experiences on that?
TomE
posted Dec 17 '24 at 3:15 pm
Hi folks, can someone educate me on the tank cutaways... there are loads of cutaways in the standard library, is there a way to combine these with a tank image to make a transparent cutaway for use with an analog bar, or are we limited to the tanks that have a transparent bar?
JRouse
posted Oct 29 '24 at 10:19 pm
I am getting SendMail Error[7]: Invaild parameters when VT is trying to alarm out. I have tested through PowerShell and I can get a test email to work. Would this be an Email Server issue or perhaps how I have the alarm notification setup in VT?
Maiza
posted Dec 26 '24 at 12:56 pm
I would like to know if it is possible to have remote access to the supervisory system through the domain/url without a VPN? I purchased a domain and hosting and I need to have my supervisory system on this domain, but I do not have a VPN. I would like to know if it is possible and also how to do this configuration because the SSL Connection video on VTScada's YouTube is out of date and some item
I am looking for advice for a project I have going on. I want to get some data from an InsiteIG product on VTScada. The InsiteIG PT2 to be precise. It offers a RS485 Modbus connection. The existing instrument our wastewater plant was using would of been a YSI product. The communication pathway is as followed; at the instrument it was an ethernet connection then to a media converter that converted
mburns
posted Dec 29 '24 at 4:57 am
I have a script written where I'm talking to a Serial port sending and receiving messages.
Is there a way send the string response to a tag created in the Tag Browser?
I have tried using the following:
Scope(\VTSDB, "Com3\R_Status", TRUE)
Scope(\VTSDB, "h{zfoiw%7k\5dhe8xmq^m", TRUE)
It does seem to work a bit but ends up crashing VTSCADA.
Also tried it with LocalScope.
Maiza
posted Dec 30 '24 at 5:26 pm
I'm trying to access my application through remote access. I tried to do the procedure in the SSL video (https://www.youtube.com/watch?v=1DSan2ltzFg
) but without success. I'm using a domain (maizavitoria.com.br) and hosting. I'm getting an error with the SSL certificate in the manager. Where am I going wrong? Please help me. The Switch used is this one: PLANET FSD-503 (https://planet.com.br/p
RayJS
posted Jan 6 at 12:40 pm

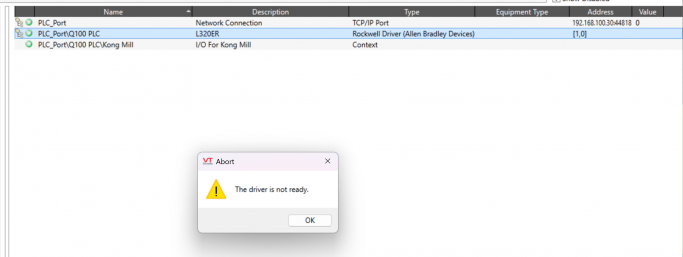

Hi, Looking for advice on how to setup and import tags from a AB micro820. From the documentation about Miro820 tags there is reference to a address select tool. Where is this tool?
If i use the import tags function this results in driver not ready.
Not sure if i have the setup correct.
IP address 10.7.113.53
TCP/IP port 44818
PLC mode Micro820/850 Symbolic addressing
Port p
I'm using scada to interface to a PLC. Is there a way to create a keyboard hotkey to interact with graphic to toggle switch. Instead of pressing actual switch connected to PLC.

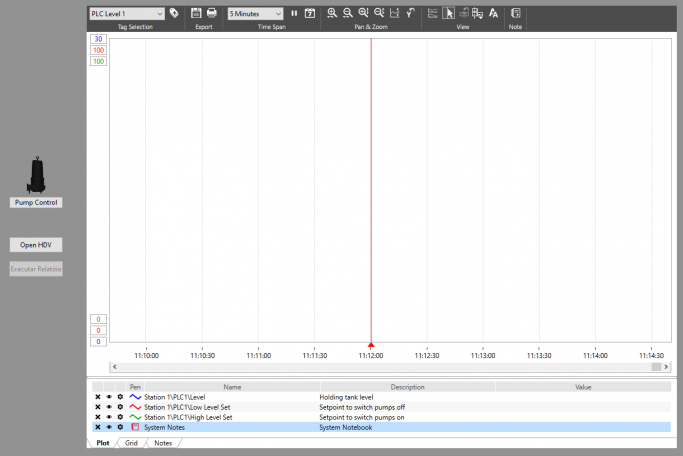

I am having trouble trying to see the full properties of a Draw HDV object. Currently has 4 trends displayed, trying to just add a 5th. See the screen shots. I tried locating the Group name but can't find it anywhere. Tried searching in tag browser too. Any insight on where to find the location to break this graphic down for editing would be very helpful and appreciated.
Thanks!
Ben
Atomeg
posted Dec 17 '24 at 7:54 am
Hi!
I have a problem with create a pulse bool tag. I need that after push button bool tag goes to 1, delay 0.1~0.5s and after goes to 0.
I'm use multiwrite tag and its not working.
I dont know how set a delay for change tag.
I needed a left triangle & a right triangle to make the shape I need in idea studio.
I thought could make two right triangles & mirror one of them but the mirror feature doesn't work with shapes, only with images.
I'm editing the pages .SRC now but that feels to me like a lot of work to do something which should be routine.
I muse be overlooking something basic here. What do o
I'm encountering an issue with VTScada where a specific tag stops logging data after performing a backup to an external USB drive (C:\VTSCADA). This doesn't happen every time, but approximately once a week, right after the backup is completed, the tag flatlines. It's consistently the same tag that's affected.
For context, I am using a Windows script that only backs up files that have changed
Maiza
posted Nov 21 '24 at 4:20 pm
The customer will purchase the paid version of VTScada. He will need to access the factory supervisor (a specific sector) remotely, but it will not be done via an Ethernet cable, so as not to run the risk of being on Wi-Fi and others, so it will be via Modbus RTU. I need some help on how to do this procedure and for it to work through VTScada.
Jerry
posted Nov 19 '24 at 10:22 am
Hi,support
As shown in the figure below：
Variable A01 is a type and below it there are 10 variables, and I want to store the history of these 10 variables in different VTScada's history databases
Are there any 2 benefits to doing so?
1.Users can set the retention time of the database data according to their needs, for example,
HistorisanA is retained for 1 year,
Histo
Hello, I am looking for a way to input a numeric entry directly into a parameter of a tag.
For example, I am trying to develop an interface for an operator to change the #highhighalarmsetpoint parameter of an IO/Calculation (Analog) tag.
The numeric entry widget is telling me the numeric entry is not linked to a tag (makes sense). Am I just using the wrong widget?
I am currently us
Jerry
posted Nov 7 '24 at 2:22 pm
Hi,Support
In order for VTScada to store data for 2 or 3 years, I need to expand the capacity of user's computer's hard drive, and I need to use RAID,
We will provide 3 ways: RAID0 or RAID1 or RAID10，
Allow users to choose one of the three RAID modes，
Can these three RAID modes store VTScada historical data normally?
Thank you
Hi Sir,
I have tried to do alarm notification test by email. Sending alarm notification to my email and acknowledge from my email by replying the email.
When I tested, the alarm notification received successfully to my gmail account. However, the alarm was automatically acknowledged even though I didn't acknowledge by replying the email with with ACK*XXX XXX (XXX XXX is alarm acknowledge
gimifo
posted Oct 29 '24 at 7:04 pm
Greetings,
I, as most people, am working to create an RTU that utilizes the MQTT communications protocol. Right now I am testing with a local broker and have data reliably getting to VTScada.
However, I need the ability to write data back to a certain topic with a certain metric. The ability seems to exist, yet I have not had any luck with VTScada publishing the message correctly yet.
U
I have set up an OPC UA Client in VTScada. I am trying to access data along with its timestamp. Does VTScada support all the different types as defined in part 6 of the OPC Foundation’s OPC UA specification, section 5.1.2? I am looking to use the DataValue type (23).
I have created two tags with the same node addressing but one has the ty field set to 1, and the other 23. The value for
Hello everyone,
I am fairly new to using VTScada and I am looking for some advice on how to set up alarms efficiently. I understand that alarms are crucial for monitoring and alerting us to critical conditions but I want to make sure I am configuring them in the best possible way to avoid unnecessary noise and ensure quick response to actual issues.
Here are a few specific questions I hav
IfElse([<ADS SERVER\TCP\SLD\GENELINE>] == 0, "<FFFFFFFF>",
IfElse([<ADS SERVER\TCP\SLD\GENELINE>] <= 5, "<FFFF0000>",
IfElse([<ADS SERVER\TCP\SLD\GENELINE>] <= 15, "<FFFFFF00>",
IfElse([<ADS SERVER\TCP\SLD\GENELINE>] <= 25, "<FF00FF00>",
IfElse([<ADS SERVER\TCP\SLD\GENELINE>] <= 35, "<FF0000FF>",
IfElse([<ADS SERVER\TCP\SL
