Lamz
posted Nov 21 '22 at 2:45 am
Hello everyone.
I am trying to use VTScada to read a string from a Delta DVP-SE PLC (which support ethernet).
However when I try to setup a tag, I only can define the address of 1 word, while my string is 3 consecutive words.
Could you please guide me how to do this.
Thank you
Lamz
posted Nov 16 '22 at 2:19 am
Hello, I am new to VTScada.
Currently we have a database where store the manufacturing plan and we want to connect VTScada to that database and take that data to display on the VTScada screen.
Please suggest which I can do to achieve it.
Sorry I do not have much experience on this, if it is possible please explain clearly.
Thank you.

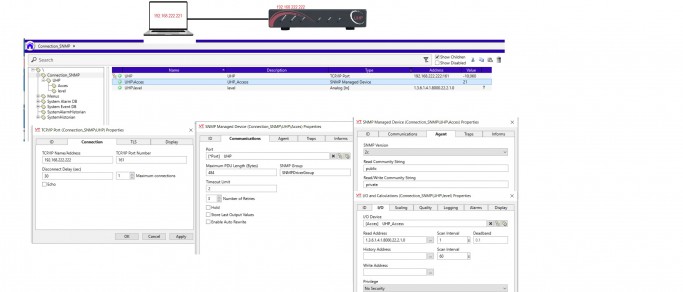

I configured an application with SNMP, but when I finished I noticed that the application does not receive a response for Gets. I followed the configuration in the VTScada Help
I am trying to connect and pull data from a multismart via modbus. I can ping the IP address of the multismart and the Modbus address for the driver is 1, but I am getting an error code of 260 from the IP address and an error code of 531 on the driver. I tried connecting to the multismart with a modbus scanner via TCP/IP but I cannot pull any data from the registers.
Tames
posted Nov 1 '22 at 3:35 pm
When dealing with a GUIText inside of a widget I can see from the help document that there is the Options section that allows for control of font size. The only issue I have is that the options are for;
no change
change based off vertical scaling of the page
scale to topmost scaling, ie. the page
I am trying to get a GUIText to scale inside of a widget so that I can change the widget dimens

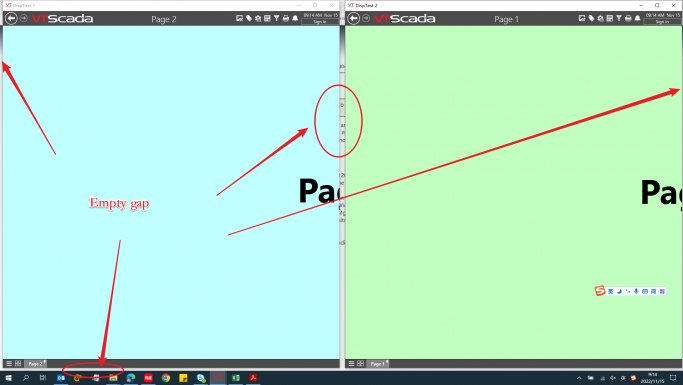

I want to get two display windows at the same time in one display screen. After set DispMgrHoriz =2 and DispMgrVert=1, I can get two windows, but there are some gaps as the following screen capture.
How can I remove the gaps while retaining the white title bar? Thanks.
crd
posted Nov 15 '22 at 3:09 pm
The notification email is attaching the wrong user when sending the message.
Example:
Original forum entry (user crd):
crd posted 1 day ago at 10:05 pm
I would like to change the alarm code to the beginning of the message, as to allow the user to 'Like' the alarm message and acknowledge it.
This currently works if we remove all of the text except the date, but that introduces the pro
crd
posted Sep 15 '21 at 7:03 pm
Is there a way to change the message in a confirmation dialog?

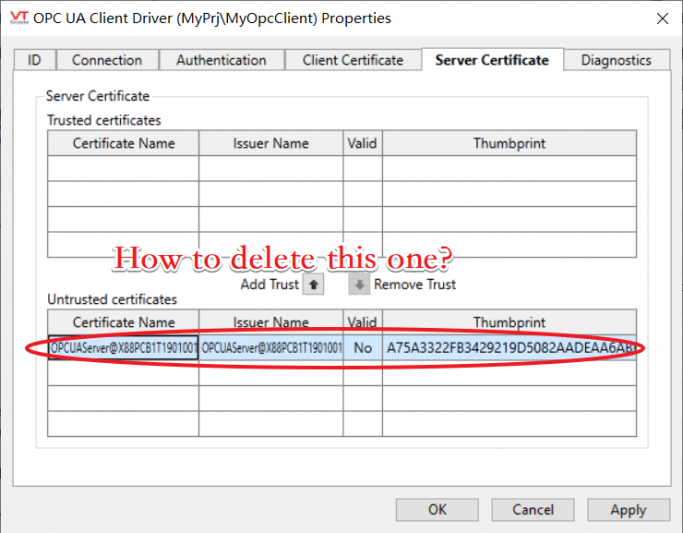

how to delete a untrusted certificate from OPC UA Client Driver properties? Thanks.
lucy
posted Nov 8 '22 at 2:02 am
What are the Remote Data access ? Which licenses need to be purchased? Remote access licenses will be enabled
What is the Remote configuration & Remote Idea Studio? Which functions are specifically included
Thank you and look forward to your reply
bobzil
posted Nov 10 '22 at 6:31 am
Hello, experts.
In the project, there is a requirement to separate users. That is, different users will enter a different first page when logging in. It is intended to create some isolation between users. That is, user 1 will enter a general map with the option of switching between the stations, and user 2 will only enter a central screen without the possibility of switching. Is this possible?
The “find and replace” button that pops up on the right sidebar in idea studio…
Is there a way to get it to work for regular widgets, groups, or tags that appear in expressions? It seems to only work for tag widgets.
It’s a huge time suck copying and pasting a widget (not tag widget), then replacing each tag manually.
Jason
posted Oct 20 '22 at 8:28 pm
I have been tasked to make a standard VTScada template. This will get used in different applications. How it is supposed to function is that it will list all the shutdown conditions and it will display which ones are in fault (easy part). Then when you click on each shutdown it will take you to the faceplate of the device it is connected too. The problem I run into is when trying to have it all p
crd
posted Oct 24 '22 at 10:35 pm
I am looking to get query data from a PostgreSQL database (not a VTScada database). Is there any way to do this in VTScada?
Hello, I have an application built that will be used on a Panel PC that has a touch screen and no keyboard. How do I enable the Keypad to popup and allow an operator to enter a SP?
BDAVIS
posted Oct 19 '22 at 4:44 pm
Is there a way to set a popup page to automatically close after it has been open for too long (say 30 seconds?)
How do you have a script always running in the background?
I want to link F8 key to silence alarms.
Dear All,
I'm very new to VT SCADA and after all the tutorial I watched, I couldn't find the answer (or maybe I missed it) to a problem I'm facing.
I want to configure a push button to start/stop a piece of equipment, and I was wondering if I could read the state of that equipment and send the opposite value through the button.
I saw that it is possible to write a static value in the "Va
adamIT
posted Oct 21 '22 at 3:12 pm
Hello,
I am using VTScada Light and I am encountering an issue where with I am getting ghosting of the images I am using tags to rotate.
I was wondering if anyone encountered this before.
BDAVIS
posted Oct 20 '22 at 4:38 pm
Is there a method to disable a control based on the value of a tag?
For example if i have a control set to "REMOTE" instead of "LOCAL" i want it to disable all the local controls based on this status tag.
Hello,
I am trying to Generate report and export tag values to my local mysql database.
I have provided ODBC Data Source name same as in the System DSN I have made in odbc data source manager in windows as you can see in this screenshot.
Why am I getting this error despite ‘vtscadaodbc’ being a valid mysql connection ?
Is there a different syntax or any more step t
bbaer22
posted Oct 11 '22 at 9:01 pm
I would like to use a Text Change 2 state, and when it's in the 0 position or non energized state I want it to show one word in a certain color and in the 1 position I want a different word and color. It doesn't look like it would be tough, but I can't get it to accept a tag. I tried a bunch of different kinds of tags and it's just not accepting any of them. I would like to use a tag for this sin
Ketul
posted Sep 29 '22 at 7:51 am
I have run two applications in my VTScada called 'App1' & 'App2'. In my 'App1' I have made some pages in Idea Studio called 'Page 1', and 'Page 2'.
In my 'App2' I have made one 'Home Page' from where I need to open 'Page 1' of 'App 1'.
How can I call this page from another application?
I have been using Vtscada for some time now on a PC windows 10.
I keep getting password login error...
I setup the port to 83 to make sure I am not clashing with anything..
I am trying to use the MS EDGE browser to access the Vtscada app locally...
http://192.168.1.250:83/all/soilsensor/anywhere
When I run the app soilsensor, I enter the username password which I tried many f
Hello everyone,
I'm playing with VT-Scada, and I encountered a problem I didn't find any solution.
I searched in the documentation but I found no answers.
I wish to plot measured data from different (but consistent) inputs in a single graph, each one with a different colour.
Is it possible to do so? If yes, can anyone tell me how?
Thanks a lot,
P

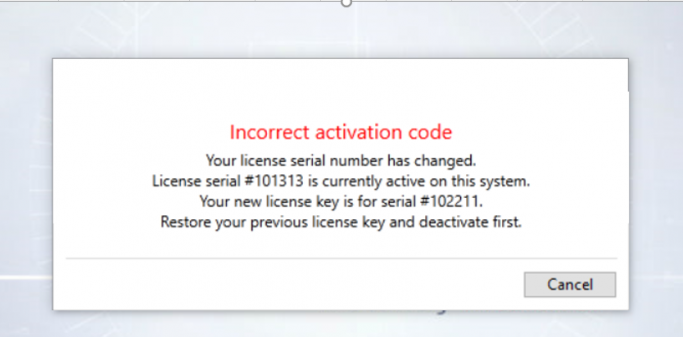

First I installed 90 day demo version in my laptop. I developed the project in that demo version. I purchased the Developemnt License key.
So, I deactivated the demo version. Now I am trying to activate it again using the licensed key(25 Chaaracter). But it is only giving option to enter 16 digit key.
Suggest how to activate it + I also want to use my existing changeset file developed on
Hi,
I have some string data internal to my Siemens S7 PLC that I want to display. When I use the string tag type all I get is the number value of the data block.
Is there a way to easily display as ASCII?
Also how to display the whole string, my string data is assigned 6 bytes in my PLC, but the maximum VTSCADA allows is 4 bytes, one double word?
For example my string is located
Hi All,
New to VTScada and evaluating the light version for our manufacturing plant.
I want to display different text (strings) based upon a tag value from our siemens plc, I am getting different values through but can't work out to conditionally call different texts based upon this value.
So for example if tag Part number == 1, display SK90
if Part number == 2, display SK110.
Hello,
I have a SCADA system that is not connected to the Internet, like most every SCADA system I work on. I have copied the Slippy Map Tiles for my area to my SCADA server. However, my map icons do not appear on the Map. No matter how far I zoom in or out.
How do I get my Map Icons to appear if I don't have an Internet connection?
Hi, i would like to know what is the language for script. Thank
