New to VT Scada. How do you change time stamps on the alarm page to the current computer time, otherwise changing it to Central Time with DST? My alarm time is currently 2 hours behind the computer time.
Maiza
posted Feb 5 '24 at 4:50 am
How do I create text buttons (inputs) for login access? For example, in VTScada, I created my user with the necessary permissions. In the supervisory, I want to add two input buttons and a confirmation button. These input buttons would be Username and Password. The user will enter their username and then their password. If it is correct, go to the plant Synopsis page. How do I do that? I'm
prafull
posted Feb 21 '23 at 4:10 pm
Hi,
I am trying to test the REST Queries .
I have set the application property "RESTAllowedOrigins" to null as given in your example HTML page.
I get TypeError failed to Fetch at the bottom of the page (in Red colour)
Anyone has experience with this REST API Queries?
Any more tips, examples etc?
It's quite frustrating when it doesn't work and we don't get the results as pe
Hi All,
I want to write three status from two different tag values.
"1" Means "Open"
"2" Means "Close"
"3" Means "Travel"
How to write the tag expression referencing another two tag value in VT SCADA.
if [Sludge Dewatering\ZIO_6333A]==1 then "1"
else if [Sludge Dewatering\ZIC_6333A]==1 then "2"
ELSE "3"
Hello, I need to convert Hexadecimal values to ASCII code.
I haven't found much information online, one script function HexToBuff however, I do not have much experience with scripting, wondering if someone can help.
Thanks
What I am doing:
Cast(
Concat(
SubStr( [Prod_End], 0, 4), {2024}
SubStr( [Prod_End], 5, 1), {1}
SubStr( [Prod_End], 7, 2), {20}
),2)
This will output 2024120 to a analog calc tag, that i will use in reporting. (I need analog type because other tags are also analog; but thats not the point)
Problem:
You can see the picture that the formatting is not foolproof. This calculation will
Bronson
posted Dec 13 '23 at 10:05 pm

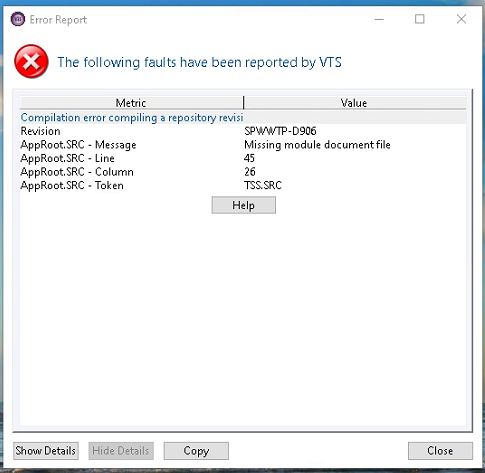

I'm currently working through developing some new windows for a client. I'm new to VT Scada and have spent the bulk of my career in Ignition. I was given a changeset file to reference what they currently have or at least within the last 6 months. I started a new application to develop just the new pages and tags that I will import into the client's system.
Traditionally I have always develop

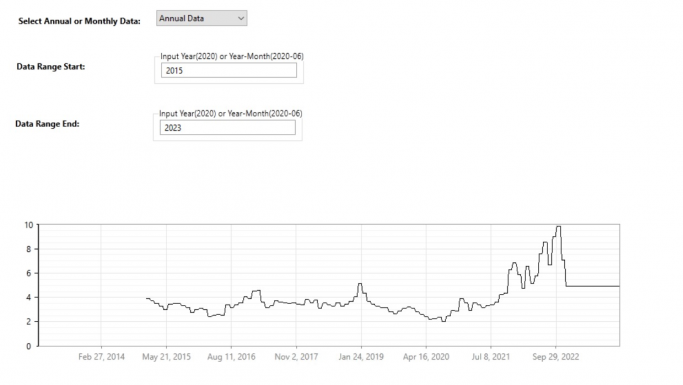

TLDR: What is the proper way to ‘wait’ for HTTPSend function to finish its entire api call? The function's url parameter changes from a droplist widget.
Hello,
I have been testing different ways to run the httpsend function. In the script block of ‘main’ module, in a called module, and as a launched module.
Goal is to change the api link according to user prefer
hilldc
posted Jan 11 '24 at 8:52 pm
Currently have two port tags setup for a lift station ... one for cell ... and one for radio. I would like to be able to switch between the two with a selector switch on a page. Possible or not? Better way? Thanks
Hi Friends,
don't want to get into details but a server was upgraded to last version from 11.3 to 12.2 . We are having issues and we want to go back to version 11.3 . is it possible ?
Thanks in advance!
Any one pls let me know how to create a dynamic window in VTScada.
When create a dynamic window it will shrunk and resize according to the window size.
I need to come up with valid expression for two lines of text with a carriage return & line feed separating them. I've done this before but I can't remember where or how. This shouldn't be impossible to find in the help. I know it's in there somewhere but nothing I search for turns up anything useful.
By the way, I am aware of VTScada's multi line text widget. That widget doesn't let
ian762
posted Jul 21 '23 at 7:14 pm
Hello, I'm trying to figure out the process for retaining historical trend data during a hardware upgrade, where I am also upgrading the VTS version.
I've found information stating to copy the directory over from the old PC to the new PC, but it seems like I may need to install the same version of VTS on the new machine, then upgrade to the newer version, and I would like to be able to do so
Firas
posted Dec 28 '23 at 7:36 am
Hi,
I am trying to create a TAG context for a group of Modbus tags.
my data type is IEEE Double Precision Floating Point (8 bytes), and I need to write an expression for the TAG address so that the address will change by the meter number;
Meter #1:
TAG1 address: 31001/Double
TAG2 address: 31005/Double
TAG3 address: 31009/Double
Meter #2:
TAG1 address: 31021
Does VTScada have the ability to acknowledge alarms via text or email?
Thanks John
jroc11
posted Dec 15 '23 at 1:52 pm
So I've had a pulse rate tag that's been pulsing and working fine for the past few weeks with zero issues. Now all of the sudden its reading as a zero for the pulse rate. This number will fluctuate from outputting a zero to outputting the correct number at its own will. Has anyone seen this before? I feel like this could be a possible bug on VTScada's end?
hilldc
posted Dec 11 '23 at 1:32 pm
Fairly new to VTScada and I need help setting up certain tag to pull from a weather station (Columbia 420) we have.
The station keeps a running total up to 10 inches before rolling back to 0 inches. I would like to display rainfall today but the reset back to 0 has me stumped as to how to setup that tag to account for the rollover which could happen in the middle of the day.
Thanks in ad
Boa noite pessoal. Eu preciso de ajuda. Como faço para controlar um driver de motor de passo como o logotipo da Siemens 8. Obrigado
Zihad
posted Dec 2 '23 at 5:26 am
When I open "Setup.ini" file by notepad then texts are shown as like below:
" • |Ù¼ƒ”5m ¬Wmkã8þ^èGw¡äÒ+-Ç~È&]ZhoRŽíq(ö$•%Ÿ¤ÄÍþú›‘•¾ÅYÜÛˇØQÆÏ<Í<3þ&Ou
jroc11
posted Dec 5 '23 at 4:22 pm
Im currently trying to find out a way that i can make a digital tag that goes from on to off and off to on every 15 minutes or so. Is there any suggestions on what the best way to do this is. I will be pairing this tag with another one in an expression to trigger a multi write tag every 15 minutes while the day is between certain times. Any suggestions help! Thanks
jroc11
posted Nov 29 '23 at 4:17 pm
So i have an analog calculation tag that is logging data based upon the whole day. i need to to grab two values from this day, these values are from 6am- 2pm and 5:15pm-2am. What is the best way to do this? i have tried using totalizers, logging tags, triggers, history stats, but no luck. I have two digital tags setup for each shifts. They output on or off depending on if the current time is in-b
mikeb
posted Aug 28 '23 at 3:24 pm
When I attempt to add my Application to my Realm from the Thin Client/Server Setup, I receive the error "HTTP server error Unknown Error -10013" when I click Apply.
What is the cause of this error?
I am using VTScadaLight version 12.1.27
mikeb
posted Nov 29 '23 at 5:16 pm
I am attempting to configure the Thin Client/Server Setup for a new application and when I click Apply I receive the error:
"HTTP server error
Unknown Error -10013."
What can cause this? I have configured nothing except for what it prompts for on install.
khicks
posted Sep 15 '23 at 4:43 pm
I'd like to use a tag to create an Upper Control Limit (UCL) and a Lower Control Limit (LCL). This involves calculating the mean and standard deviation for a period of time. The formulas would be:
UCL = mean + (3 x (Standard Deviation))
LCL = mean - (3 x (Standard Deviation))
What would be the best approach to do this? I was looking at doing an I/O Calc tag, but the avg() and SDev()
Hello,
I wrote a calculation(analog) tag to show datetime and that value will export to excel but excel is cutting the last 3 digits.
I used the following expression, and it gives the value 202310282319 which i need to process in excel but that's fine.
CONCAT(Date(Today(), "yyyyMMdd"), "", Time(Now(1), "HHmm"))
Giving hyphens between dates don't work for analog tags.
I cannot change
gtuvar
posted Nov 24 '23 at 12:12 pm
How to go to a specific page when user sign out. e.g. I am using \SecurityManager\IsLoggedOn() and if return value of this API changes to Zero I want to go to a specific starting page
Hello,
We're familiar with most SCADA software, but still learning VTSCADA. We are used to the flexibility of script to do things that native symbols and widgets do not do.
Right now, we are trying to configure a button that when clicked, will perform:
TagA = TagB. (where TagA and TagB are Analog Values)
Searching through the help files, we can only find "button" style widgets in
I need to move history from one tag to another. For reasons, I need to remove one tag and replace it with another but I need to keep the history, and it's on about 80-100 tags.
Does anyone have a strategy for migrating data from one tag into another in bulk fashion? Exporting the data, massage the date and timestamp and do the CSV import would take much too long.
Thanks.
I'm looking to see if there are any tools that can "skinny" down historical data. We are now supporting some hosts that had overly high poll rates when they were commissioned, the historian subsequently got bloated and is now using up too much HDD space.
Are there any tools available that can go back and remove swaths of data, or perhaps replace a 10 min span of 1 second data with a single a
I'm trying to add a new OPC UA client :
endpoint url : opc.tcp://10.247.10.2:4840
allow unsecured connections is on
authentification is Anonymous
inside the client certificate I created a new certificate
In the server certificate I saw an untrusted certificate and added it into the trusted ones
Now when I add this OPC UA client, the values says : 514 - Server Certificate subj
